Brodit pipe mount with mounting plate 12-44mm diameter

Prijs € 67,95

Ruim op voorraad

Snelle verzending
Producten van hoge kwaliteit
Veilige betalingen

Gegevens

Meer informatie

Compatibility

Instructies

Gegevens

For installation of devices on pipes and rods/bars, for example most types of vehicles; motorcycles, boats, carts, stands, wheelchairs, airplanes etc. The Quick Clamp Mount with AMPS Plate is an easy way to mount a holder for easy access and removal. The mount can be attached to any pipe or round tube between 12 mm and 44 mm diameter. The quick release feature allows the mount to be easily removed when not in use.

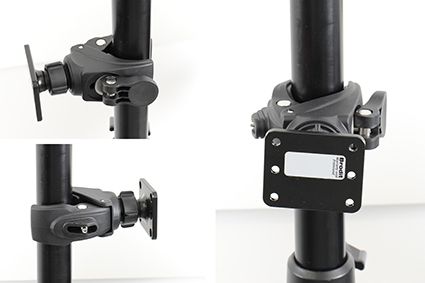

The mounting plate can tilt 210° and rotate 360°, the mounting plate is 50x42 mm with pre-drilled AMPS-holes. Made in black plastic.

Meer informatie

Meer informatie
Accessoiremerk	Brodit
Barcode	7320282162542
Adviesverkoopprijs incl. BTW	€ 67,95
Montage opties	Buis / Stuur montage
Kleur	zwart
Montage standaard	AMPS
Toestel houder breedte / hoogte	Ø 18-25 mm, Ø 19-30 mm, Ø 22-31 mm, Ø 29-40 mm
Retourneren	Dit product kan geretourneerd worden

Toon meer + Minder weergeven -

Compatibility

Toon meer + Minder weergeven -

Instructies

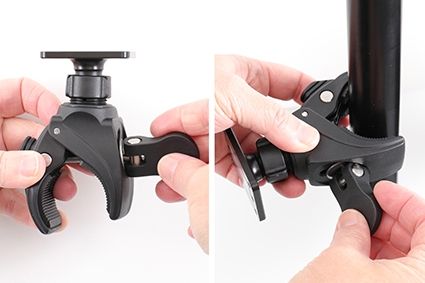

1. Open the mount by turning the quick release tab outwards. Then turn the quick release tab counterclockwise until the clamping jaws fit over the pipe.

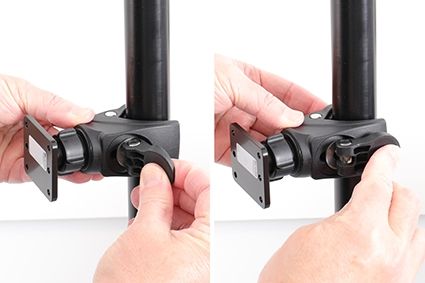

2. Turn the quick release tab clockwise until it is barely tight. Flip the quick release down to secure the clamp in place. If it is too tight; loosen the screw slightly and try again.

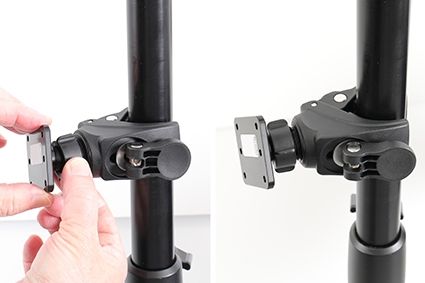

3. Adjust the mounting plate by loosening the thumbscrew and adjusting the mounting plate.
